Introduction:

Induction Vacuum Furnace, induction vacuum melting furnace,induction vacuum melting,vacuum induction furnace, which can melt metal and sinter power by using the high frequency or medium frequency induction heating under the condition of vacuum.  It is applicable in the field of metal materials, such as Ni,special steel,precision alloys,Cu alloys,Nd-Fe-B,Dysprosium metal,active metal,high-temperature alloys,special materials ,magnetic materials and so on. These metal materials can be melted, cast and sintered in a vacuum or in the prot- ection of the atmosphere.

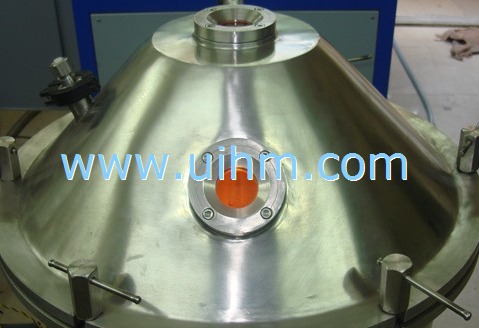

vacuum induction melting

Vacuum Induction Heating

Vacuum Induction Heating_3

Vacuum Induction Heating_2

Vacuum Induction Heating_1


Features:
1.High temperature:up to 3000 celsius ;
2.Far infrared thermometer;
3.Water Cooling;
4.PID controll;
5.Graphite crucible.

Main technical parameters:

Maximum temperature: 3000 °C
High-temperature zone volume: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3
Furnace working atmosphere: vacuum, hydrogen, nitrogen, inert gases
Temperature uniformity: ≤ ± 10 °C
Temperature measurement: infrared optical temperature measurement range of 800 ~ 3500 °C temperature or 0 ~ 3500 °C; Accuracy: 0.2 ~ 0.75%.
Temperature control: process control and manual control; control accuracy: ± 1 °C
Limit heating rate: 200 °C / min (air furnace, depending on the volume and the high temperature furnace configuration).

Product Description:

Induction Vacuum Furnace periodic operating, providing vacuum or protective atmosphere, in which the alloy steel, lanthanon and others can smelt and cast. Besides, it can be also used in metal materials' refining.

Model Electric Power Frequency Maximum Working Temperature   Capacity Ultimate Vacuum Pressure Rising Rate IF power supply

UM-VF-3

30kw

4000hz

1650 degrees

3kgs

6.67×10-3Pa

6Pa/ hr.

IGBT

UM-VF-10

60kw

1500hz

3000 degrees

10kgs

6.67×10-3Pa

6Pa/ hr.

IGBT

UM-VF-25

100kw

2000hz

3000 degrees

25kgs

6.67×10-3Pa

6Pa/ hr.

IGBT

UM-VF-50

100kw

1500hz

3000 degrees

50kgs

6.67×10-3Pa

6Pa/ hr.

KGPS/IGBT

UM-VF-150

200kw

1500hz

3000 degrees

150kgs

6.67×10-3Pa

6Pa/ hr.

KGPS

UM-VF-200

250kw

2500hz

3000 degrees

200kgs

6.7×10-2Pa

6Pa hr.

KGPS



Induction Vacuum Melting Furnace (1)
Induction Vacuum Melting Furnace (1)

Induction Vacuum Melting Furnace (2)
Induction Vacuum Melting Furnace (2)

Induction Vacuum Melting Furnace (3)
Induction Vacuum Melting Furnace (3)

Induction Vacuum Melting Furnace (4)
Induction Vacuum Melting Furnace (4)

induction vacuum melting machine
induction vacuum melting machine

vacuum induction melting machine with casting function_1
vacuum induction melting machine with casting function_1

vacuum induction melting machine with casting function_2
vacuum induction melting machine with casting function_2

vacuum induction melting machine with casting function_3
vacuum induction melting machine with casting function_3
