KGPS Induction Furnace UM-3000KW-SCR-MF

 Views Send Enquiry

medium frequency SCR (KGPS) induction furnace
medium frequency SCR (KGPS) induction furnace

Introduction and application

      This is the device converting three phase power current into single phase medium frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance and features
   1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
   2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
   3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
   4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low  oxidization loss, uniform metal content;
   5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
   6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.

Main Technical Parameters:

Power Supply Type Rated Power (KW) Output Frequency (KHZ) Input Voltage (V) Input Current (A) DC Voltage (V) DC Current (A) Rectifier Pulse Transformer Capacity (KVA) Cooling Water Consumption (T/H)
UM-200KW-SCR-MF 200 2.5-10 380 320 500 400 6 250 5
UM-250KW-SCR-MF 250 1-8 380 400 500 500 6/12 315 6
UM-300KW-SCR-MF 300 1-8 380 480 500 600 6/12 315 6
UM-400KW-SCR-MF 400 1-4 380/720 640/336 500/950 800/420 6/12 400 7
UM-500KW-SCR-MF 500 1-4 380/720 800/420 500/950 1000/526 6/12 500 7
UM-600KW-SCR-MF 600 1-2.5 380/720 960/505 500/950 1200/630 6/12 600 9
UM-800KW-SCR-MF 800 1-2.5 380/720 1280/673 500/950 1600/842 6/12 800 10
UM-1000KW-SCR-MF 1000 1-2.5 380/720 1600/842 500/950 2000/1052 6/12 1250 10
UM-1200KW-SCR-MF 1200 0.75-2.5 380/720 1920/1010 500/950 2400/1263 6/12 1250 12
UM-1500KW-SCR-MF 1500 0.5-1 720/950 1263/960 950/1250 1578/1200 6/12 1800 15
UM-2000KW-SCR-MF 2000 0.5-1 720/950 1684/1280 950/1250 2105/1600 6/12 2000 17
UM-2500KW-SCR-MF 2500 0.5-1 720/950 2105/1600 950/1250 2630/2000 6/12 2500 20
UM-3000KW-SCR-MF 3000 0.5-1 1000 1825 1315 2280 6/12 3000 22
UM-3500KW-SCR-MF 3500 0.5-1 1000 2130 1315 2660 6/12 3500 25
UM-4000KW-SCR-MF 4000 0.5-1 1000 2433 1315 3040 6/12 4400 30
UM-5000KW-SCR-MF 5000 0.5 1000 3040 1315 3800 12 5000 35


UM-GWS series for melting steel, alloy steel, cast iron

Furnace Type Rated Capacity (Ton) Rated Power (KW) Rated Frequency (KHz) Furnace Voltage (V) Working Temperature (℃) Melting Speed (T/H) Melting Time (Minutes) Power Consumption (KWH/T) Cooling Water Consumption (T/H)
UM-GWS-0.15T 0.15 200 2.5 1500 1750 0.41 22 580 8
UM-GWS-0.25T 0.25 300 1 1500 1750 0.51 40 620 10
UM-GWS-0.35T 0.35 350 1 1500 1750 0.58 45 650 12
UM-GWS-0.5T 0.5 400 1 2500 1750 0.95 45 650 15
UM-GWS-0.75T 0.75 600 1 2500 1750 1.2 48 640 20
UM-GWS-1T 1 800 1 2500 1750 1.5 55 600 25
UM-GWS-1.5T 1.5 1200 0.75 2500 1750 2 60 580 35
UM-GWS-2T 2 1600 0.5 2500 1750 2.6 60 580 40
UM-GWS-3T 3 2500 0.5 2500 1750 3.8 65 580 50
UM-GWS-5T 5 3500 0.5 3400 1750 6 70 550 55
UM-GWS-6T 6 4000 0.5 3400 1750 7 75 550 60
UM-GWS-8T 8 5000 0.5 3400 1750 8 75 530 70
basic equipment: Melting Furnace, Hydraulic System (or gear motor with flame and flange), water cooling cable, operation station, (water tank or The cooling tower)

UM-GWC series for melting copper, Bronze, Nickel-chromium copper, alloy copper

Furnace Type Rated Capacity (Ton) Rated Power (KW) Rated Frequency (KHz) Furnace Voltage (V) Working Temperature (℃) Melting Speed (T/H) Melting Time (Minutes) Power Consumption (KWH/T) Cooling Water Consumption (T/H)
UM-GWC-0.3T 0.3 160 1 1200 1300 0.3 60 390 7
UM-GWC-0.5T 0.5 250 1 1200 1300 0.5 60 390 8
UM-GWC-1T 1 500 1 1200 1300 1.2 50 380 12
UM-GWC-1.5T 1.5 800 0.75 1200 1300 1.8 50 380 15
UM-GWC-2T 2 1000 0.5 1200 1300 2.5 50 370 20
UM-GWC-3T 3 1500 0.5 1200 1300 3.3 55 370 35
UM-GWC-5T 5 2500 0.3 1200 1300 5.5 55 360 48
UM-GWC-8T 8 3500 0.5 1650 1300 7 70 360 55
UM-GWC-10T 10 5000 0.25 1650 1300 12 60 350 60
basic equipment: Melting Furnace, Hydraulic System (or gear motor with flame and flange), water cooling cable, operation station, (water tank or The cooling tower)

UM-GWA series for melting Aluminum

Furnace Type Rated Capacity (Ton) Rated Power (KW) Rated Frequency (KHz) Furnace Voltage (V) Working Temperature (℃) Melting Speed (T/H) Melting Time (Minutes) Power Consumption (KWH/T) Cooling Water Consumption (T/H)
UM-GWA-0.1T 0.1 100 1 1500 700 0.2 30 640 6
UM-GWA-0.15T 0.15 100 1 1500 700 0.3 30 640 7
UM-GWA-0.3T 0.3 160 1 1500 700 0.5 35 630 7
UM-GWA-0.5T 0.5 250 1 1500 700 0.75 40 610 9
UM-GWA-0.75T 0.75 350 1 1500 700 1 45 570 13
UM-GWA-1T 1 500 0.75 2500 700 1.3 50 540 17
UM-GWA-1.5T 1.5 800 0.75 2500 700 1.8 50 520 22
UM-GWA-2T 2 1000 0.5 2500 700 2.5 50 510 30
UM-GWA-3T 3 1500 0.5 2500 700 4 50 500 34
basic equipment: Melting Furnace, Hydraulic System (or gear motor with flame and flange), water cooling cable, operation station, (water tank or The cooling tower)

  • Melting time and power consumption/ton is important to equipment power, raw material shape and weight, operator's skill level and other elements;
  • Power parameters shall be subject to steel melting; lower power is required by melting of copper, aluminum, zinc or other material with low melting point; please consult Hengyang Technical Department for specific data;
  • Configuration: an medium frequency power supply, a capacitor cabinet, an overturn control cabinet, body, two sets of reduction boxes and supports, two water cooling cables, etc.;
  • The above data is of standard model. We also provide customized non-standard products with different power or melting speed.

KGPS Medium Frequency Induction Heating Machine (SCR Induction Furnace)

1 Main Introduction
The equipment is the frequency conversion device that let the 3 phase power current change to simple phase Medium frequency current, make the metal occur the vortex lose by the electromagnetic field induction, reach the heating’s aim. Main used in the steel, iron, copper, brass, alum, stainless, zinc, tin, nickel, gold, silver, Pt and so on ferrous and non ferrous material and alloy material’s melting, heating, keep warm, forging, bending pipe. Some kinds of heating structure:
(1)Medium Frequency Induction Heating Power Supply+ Melting Furnace
(2)Medium Frequency Induction Heating Power Supply+ Heat Preservation Furnace
(3)Medium Frequency Induction Heating Power Supply+ Quenching Transformer+ Induction coil
(4)Medium Frequency Induction Heating Power Supply+ Forging Furnace

2 . Features:
1). High Efficient
KGPS Induction Heating Power Supply Device has high change efficient(90-95%), when output power is low, the power supply change efficient will not reduce, especially for the heat treatment field, some workpiece need to be heated in subsection, start and stop the machine frequently, no any lose at the "off" status. So, adopt the KGPS Medium Frequency Induction Heating can save the energy in the induction heating field.
2). Small Size and Light Weight
KGPS Medium Frequency Induction Heating made of SCR, no complete mechanical rotate, no shock, small voice, no any special request for the floor construction when install.
3). Easy to Operate
KGPS Medium Frequency Induction Heating has a large range power regulate, frequency conversion can change automatically follow to the loading parameter ( means frequency tracking). Loading circuit keep almost resonance status, means working in best status. And its has a series automatic protection device, make its has a stable and reliable working.
4). Flexible to Start
KGPS Medium Frequency Induction Heating adapt to the zero voltage start, with high start success ratio without attack, fast and stable. Based on these, accompany new and special integrated circuit development, its has high stability and impact structure popular with the customers.
A Adopt advanced large scale chip, less element, work stable.
B . Advanced control circuit design, performance stable, failure rate is low.
C Frequency range is large, at 50Hz-10000Hz can use directly not need adjust.
D. Adopt the zero voltage soft start, has a high start up success rate not attack, very popular with customers .

UIHM KGPS Induction Furnace Features:

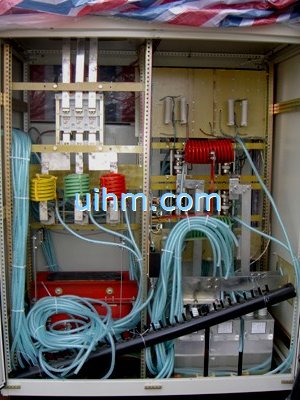

1) Cooling system for SCR (all pipe are used the stainless steel)
2) TECHSEM SCR (best quality)
3) All screw in melting furnace is used stainless steel
4) Pipe for the power supply (Japan brand, good quality)
5) Breaker (electricity auto breaker, some factory use the manual type)
6) In our power supply have water relay to protect the power supply if the not enough water in the machine will stop the machine automatic.)
7) In the power supply have water temperature protect system, if the water temperature higher than you set the temperature for the power supply, the machine will stop to protect the machine.


Download UIHM catalog of induction heating machine
