Induction Annealing brass wire
Views Send Enquiry
Objective Continuously anneal a brass wire used in electric motors at a rate of 16.4 yds (15m) per minute to eliminate work hardening caused during the drawing process.
Material Square copper wire 0.06” (1.7mm) dia., temperature indicating paint
Temperature 842 ºF (450 ºC)
Frequency 90 kHz
Equipment • 40kW induction heating system, equipped with a remote workhead containing eight 1.0μF capacitors for a total of 8.0μF
• An induction heating coil designed and developed specifically for this application.
Process A twelve turn helical coil is used. A ceramic tube is placed inside the coil to isolate the copper wire from the copper coil and to allow the copper wire to flow smoothly through the coil.
Power runs continuously to anneal at a rate of 16.4 yds (15m) per minute.
Results/Benefits Induction heating provides:
• Hands-free heating that involves no operator skill for manufacturing
• Flameless process
• Ideal for in-line production processes

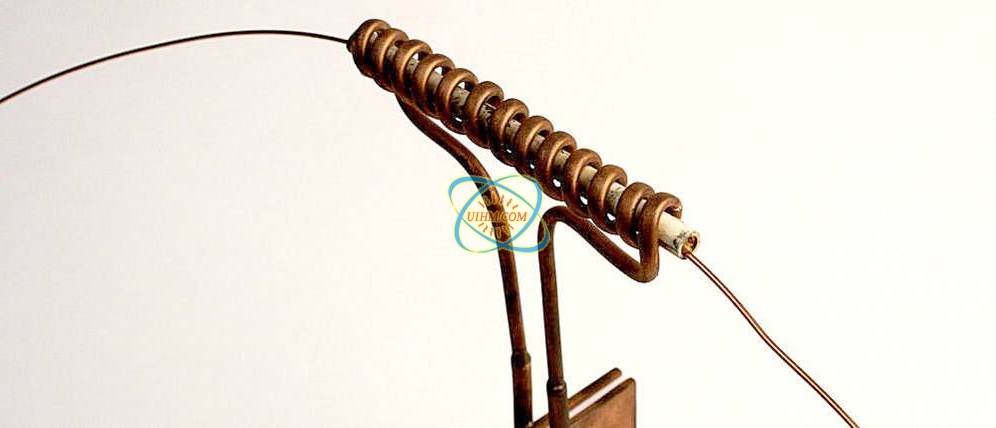

copper-wire-passing-through-coil

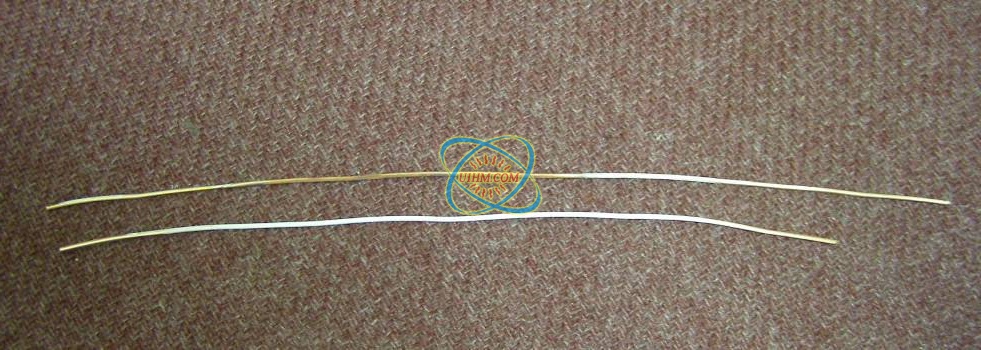

annealed-wire
