Induction Brazing Carbide Tips
Views Send Enquiry
Objective Attaching carbide cutters to a steel meat cutter impeller
Material carbide blocks; steel shank fitting
Temperature 1400 °F (760 °C)
Frequency 219 kHz
Equipment Power of 30kW induction heating systems including:
Induction heating coil
Workhead: two-cap 1.0μF (Total 0.5 μF)

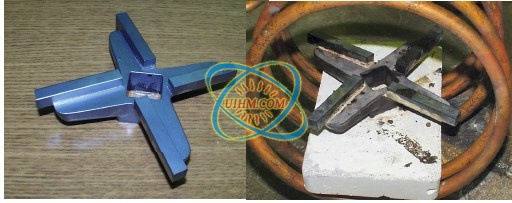

Process The entire part is placed in a five-turn helical coil, the power is applied until the part is heated to the required temperature and a uniform heat pattern is achieved. The coil allows for easy fixturing and uniformity of heating between the carbide and the steel shank for a premium braze joint.
Results/Benefits Precision: Due to the size of the induction coil, the process allows for precise placement of the carbides on the steel shanks
Economy: Power is consumed only during the heat cycle Repeatability: joint quality is maintained in this repeatable process
Material carbide blocks; steel shank fitting
Temperature 1400 °F (760 °C)
Frequency 219 kHz
Equipment Power of 30kW induction heating systems including:
Induction heating coil
Workhead: two-cap 1.0μF (Total 0.5 μF)
Process The entire part is placed in a five-turn helical coil, the power is applied until the part is heated to the required temperature and a uniform heat pattern is achieved. The coil allows for easy fixturing and uniformity of heating between the carbide and the steel shank for a premium braze joint.
Results/Benefits Precision: Due to the size of the induction coil, the process allows for precise placement of the carbides on the steel shanks
Economy: Power is consumed only during the heat cycle Repeatability: joint quality is maintained in this repeatable process
