Induction Sealing Shampoo Container
Views Send Enquiry
Objective To heat an aluminum foil inside a plastic shampoo cap for sealing
Material 2.0” diameter, plastic flip top cap, with a 0.9” diameter aluminum foil seal
Temperature 250 – 300 ºF (120 – 150 °C)
Frequency 225 kHz
Equipment Power of 10 kW, induction heating system, equipped with a remote heat station containing two 1.5 μF capacitors (total capacitance 0.75 μF).
An induction heating coil designed and developed specifically for this application.
Process

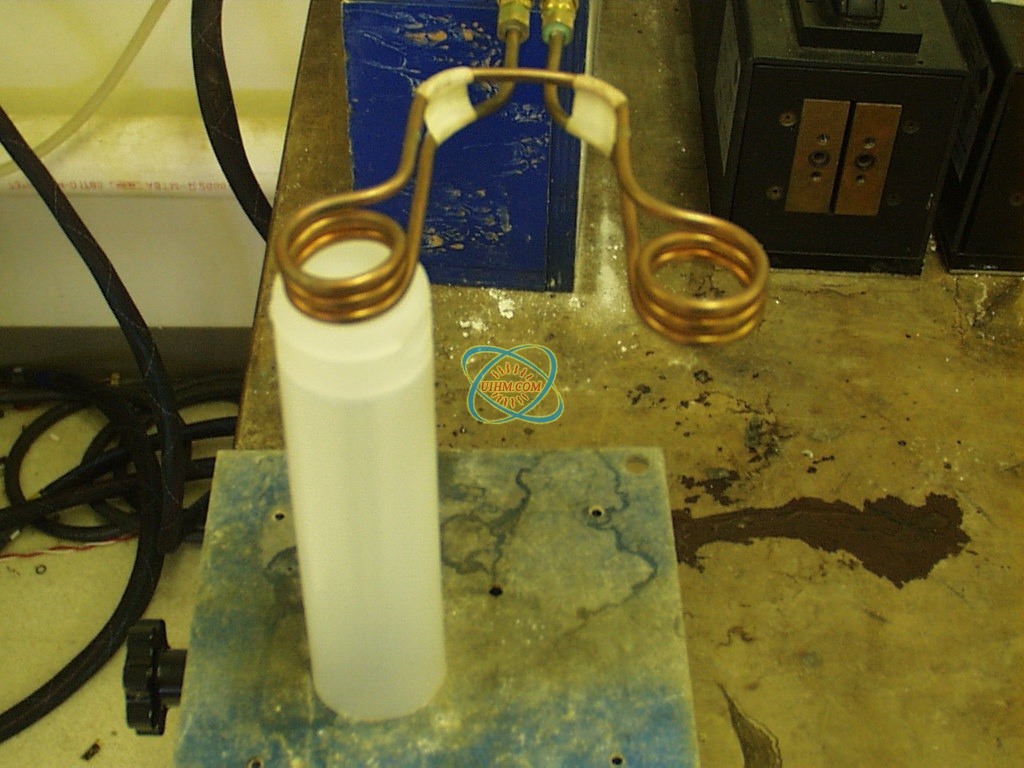

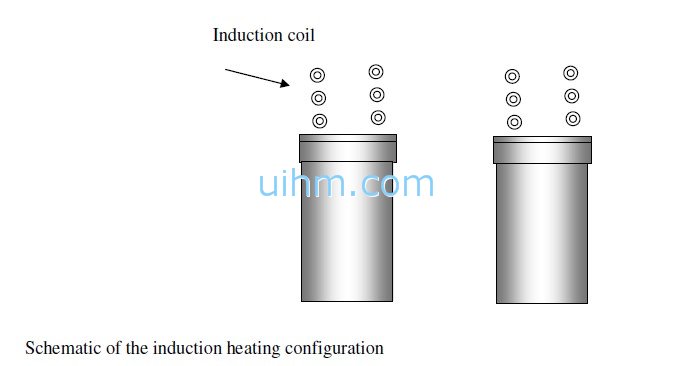

A three-turn two-position helical coil is used to heat the aluminum foil in a tunnel style assembly. Product (containers) passes easily under the induction coil. The assembly is located such that the entire perimeter of the aluminum foil is heated uniformly. The container and cap is placed under the coil and RF power delivered for 0.12 seconds. The aluminum foil heats and seals to the plastic of the cap.
Results/Benefits
This induction heating configuration fulfills the process requirements and:
• uses a simple, economical coil design
• increases throughput with a dual-position coil
• delivers quality, consistent seals
• offers a repeatable process, well-suited for automation
Material 2.0” diameter, plastic flip top cap, with a 0.9” diameter aluminum foil seal
Temperature 250 – 300 ºF (120 – 150 °C)
Frequency 225 kHz
Equipment Power of 10 kW, induction heating system, equipped with a remote heat station containing two 1.5 μF capacitors (total capacitance 0.75 μF).
An induction heating coil designed and developed specifically for this application.
Process
A three-turn two-position helical coil is used to heat the aluminum foil in a tunnel style assembly. Product (containers) passes easily under the induction coil. The assembly is located such that the entire perimeter of the aluminum foil is heated uniformly. The container and cap is placed under the coil and RF power delivered for 0.12 seconds. The aluminum foil heats and seals to the plastic of the cap.
Results/Benefits
This induction heating configuration fulfills the process requirements and:
• uses a simple, economical coil design
• increases throughput with a dual-position coil
• delivers quality, consistent seals
• offers a repeatable process, well-suited for automation
