Induction Shrink fitting carbide ring
Views Send Enquiry
Objective Shrink fitting a carbide ring into a steel valve seat
Material Steel valve seat 6” (152.4mm) OD with 3” (76.2mm) ID hole & .75” (19mm) thick, carbide ring
Temperature 500 ºF ( 260 ºC)
Frequency 55 kHz
Equipment • Power of 25kW induction heating system, equipped with a remote workhead containing two 0.50 μF capacitors for a total of 0.25 μF
• An induction heating coil designed and developed specifically for this application.

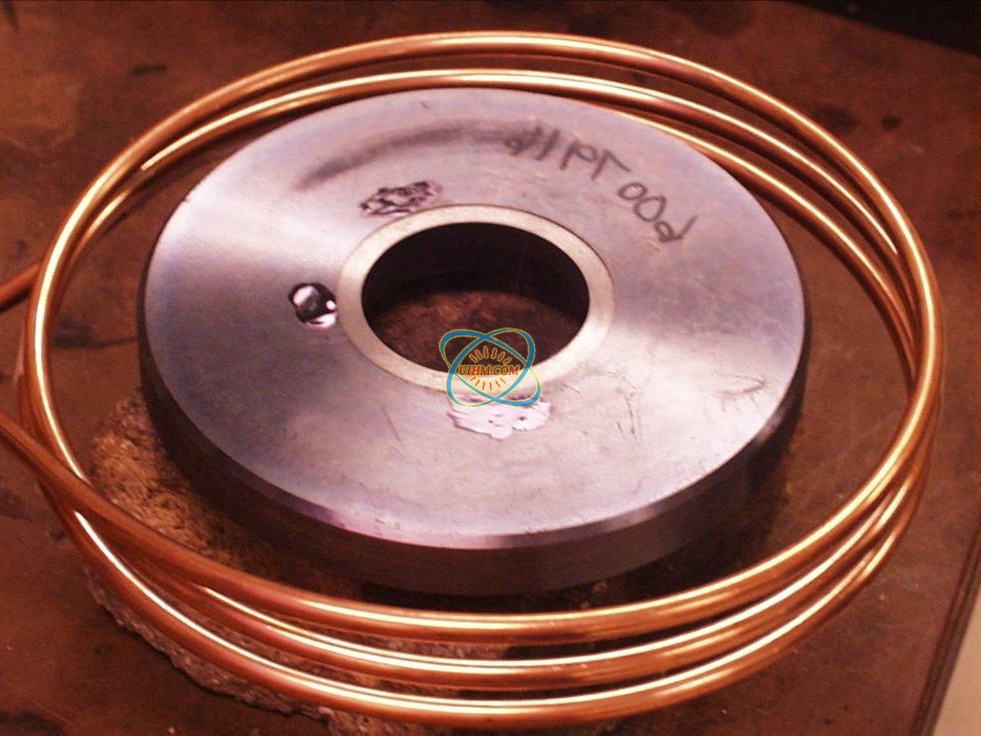

Process A three turn helical coil is used to heat the steel valve seat. The steel valve seat is placed in the coil and heated for 30 seconds to enlarge the center hole & drop the carbide ring in for the shrink fitting process.
Results/Benefits Induction heating provides:
• Accurate and repeatable results
• Ease of integration into existing production lines
• Energy efficient, only heats the part, not the atmosphere around it
• Hands-free heating that involves no operator skill for manufacturing
• Even distribution of heating
shrink fitting carbide ring
