Induction Bonding Gasket to Nut
Views Send Enquiry
Objective To heat a steel sombrero nut prior to gasket bonding
Material • Steel sombrero-shaped nut approx. 2” (50.8mm) diameter, 2” (50.8mm) in height • gasket
Temperature 350 ºF (176 ºC)
Frequency 266 kHz
Equipment • Power of 6kW induction heating system, equipped with a remote workhead containing two 1.5μF capacitors for a total of 0.75μF
• An induction heating coil, designed and developed specifically for this application.
Process A multi-turn pancake coil is used to preheat the nut. It is then transported to the next station where it is pressed onto a gasket for bonding
Results/Benefits Induction heating provides:
• Even distribution of heat that carries through to the bonding station.
• Hands-free operation that involves no operator skill for manufacturing
Material • Steel sombrero-shaped nut approx. 2” (50.8mm) diameter, 2” (50.8mm) in height • gasket
Temperature 350 ºF (176 ºC)
Frequency 266 kHz
Equipment • Power of 6kW induction heating system, equipped with a remote workhead containing two 1.5μF capacitors for a total of 0.75μF
• An induction heating coil, designed and developed specifically for this application.
Process A multi-turn pancake coil is used to preheat the nut. It is then transported to the next station where it is pressed onto a gasket for bonding
Results/Benefits Induction heating provides:
• Even distribution of heat that carries through to the bonding station.
• Hands-free operation that involves no operator skill for manufacturing

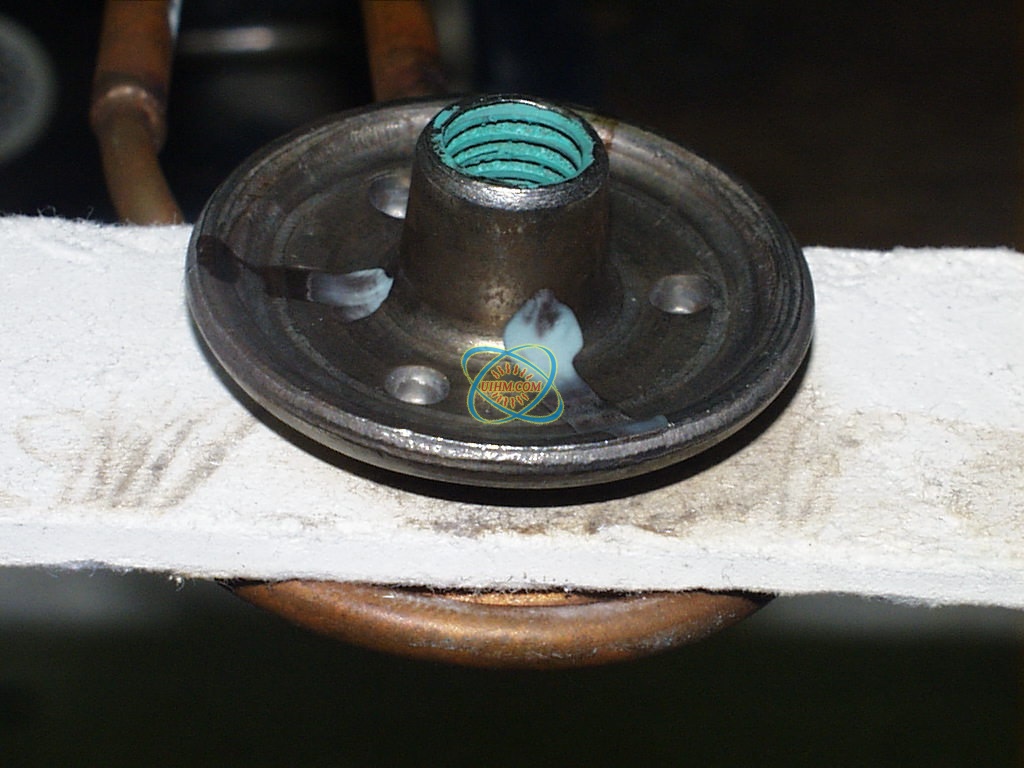

Bonding-Gasket-to-Nut
