Metal to Plastic by Induction Bonding

 Views Send Enquiry

Objective To heat a steel magnetic steel post to 300°F for a bonding application.
Material Magnetic steel posts Plastic handle
Temperature indicating paint
Temperature 300°F (149°C)
Frequency 288 kHz
Equipment Power of 6 kW, 100-400 kHz induction heating power supply, equipped with a remote heat station containing a 0.66 μF capacitor.
A folded pancake induction heating coil designed and developed specifically for this application.
Process Initial tests were conducted on parts without any plastic
assembly. Temperature indicating paint is used to determine time to temperature and the heating pattern on the post.
The plastic handle is slid on to the picks or mirror. The assembly is placed inside the induction heating coil and
heated. Parts are cooled in position before being removed from the coil.

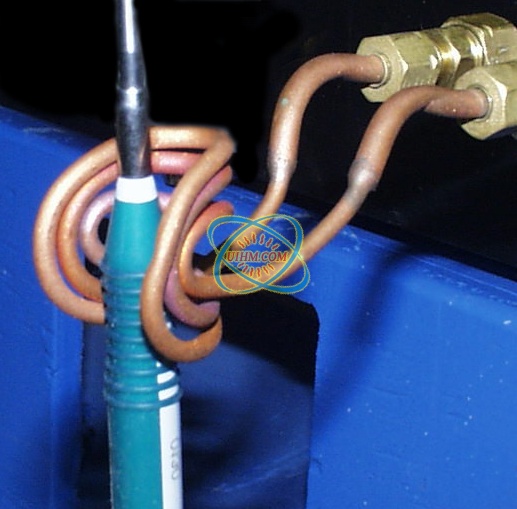

To heat one end, vertical positioning is optimal (shown). A dual coil design for simultaneous heating of both ends requires horizontal positioning.
Results/Benefits Time and current required for parts:
Mirror: 265 A @ 7.5 sec
Big hook: 205 A @ 7.00 sec
K Curve: 120 A @ 5.00 sec
Curve: 120 A @ 5.00 sec
Reliable bonds are produced when the diameters of the preassembled parts are consistent with little clearance before they are heated.
Bonding Metal to Plastic
