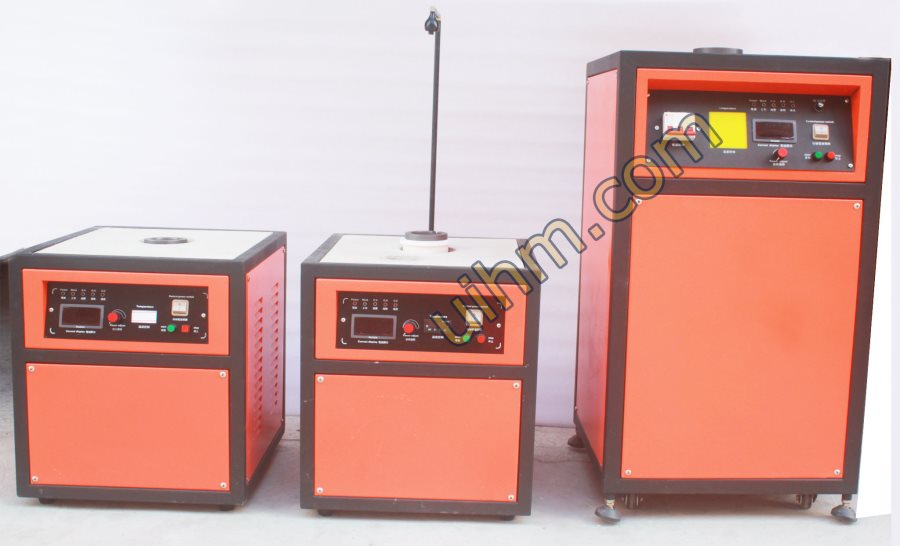

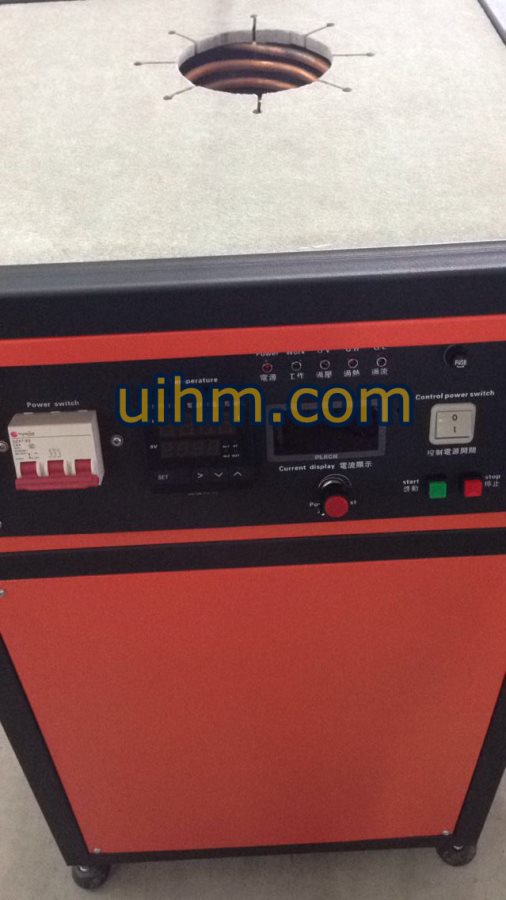

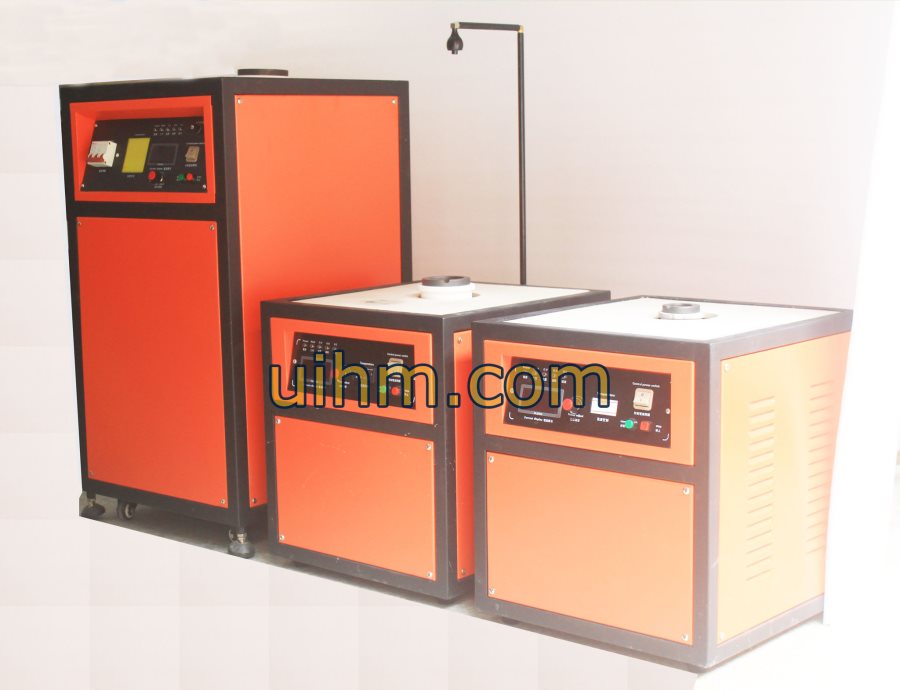

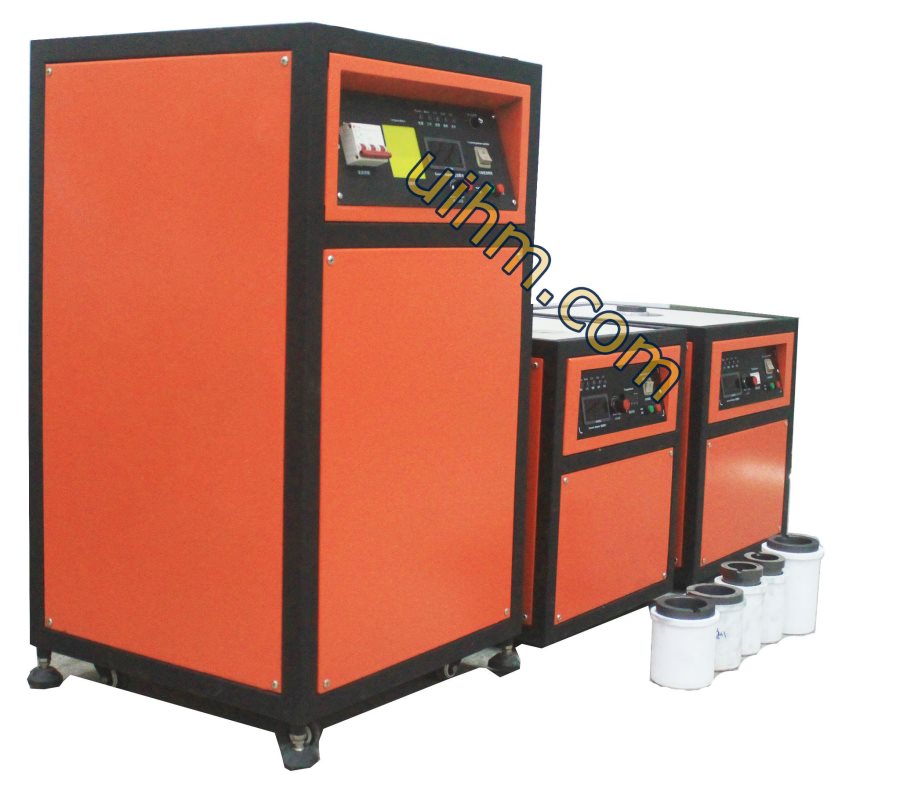

induction gold melting machines

Type:
Parameter: Download PDF Catalog
Tags: induction, gold, melting, machines
Attn:The photos in this page are reference only, and the actual delivered goods shall prevail!

Type	Output Power	Input Current	Absorbed Power	Max. Frequency	Input Voltage	Melting Capacity	Melting Materials
UM-05C-MF	6KVA	23A	5KW	20KHz	220VAC, 50Hz, Single Phase	1~3KG/3~6 minutes	Gold, silver, platinum, copper
UM-05C-RF	6KVA	27A	6KW	60KHz	220VAC, 50Hz, Single Phase	1~3KG/3~6 minutes	Gold, silver, platinum, copper
UM-05C-HF	6KVA	27A	6KW	100KHz	220VAC, 50Hz, Single Phase	1~3KG/3~6 minutes	Gold, silver, platinum, copper
UM-15C-MF	15KVA	15A	10KW	20KHz	220VAC, 50Hz, Single Phase	1~4KG/2~5 minutes	Gold, silver, platinum, copper
UM-15C-HF	15KVA	15A	10KW	100KHz	220VAC, 50Hz, Single Phase	1~4KG/2~5 minutes	Gold, silver, platinum, copper
UM-25C-MF	25KVA	30A	20KW	20KHz	380VAC, 50Hz, Three Phase	4~8KG/2~5 minutes	Gold, silver, platinum, copper
UM-25C-RF	25KVA	30A	20KW	50KHz	380VAC, 50Hz, Three Phase	4~8KG/2~5 minutes	Gold, silver, platinum, copper
UM-25C-HF	25KVA	30A	20KW	80KHz	380VAC, 50Hz, Three Phase	4~8KG/2~5 minutes	Gold, silver, platinum, copper
