UM-05AB-UHF induction heater
Views Send Enquiry
- Type: UM-05AB-UHF
- Parameter: Download PDF Catalog
- Attn:The photos in this page are reference only, and the actual delivered goods shall prevail!
Parameters of (UHF) Ultra-High Frequency Induction Heating Machines:
Type | Output Power | Input Current | Absorbed Power | Max. Frequency | Input Voltage | Cooling Water | Normal Size (cm) | Net Weight(kg) |
---|---|---|---|---|---|---|---|---|
UM-05AB-UHF | 6KVA | 23A | 5KW | 1.5MHz | 220VAC, 50Hz, Single Phase | >0.2 MPa, 2-5 L/Min, <40 ºC |
Main: 43 X 35 X 13 Head: 23 X 10 X 12 |
10+6 |
UM-06A-UHF | 6.5KVA | 27A | 6KW | 1.1MHz | 220VAC, 50Hz, Single Phase | >0.2 MPa, 5 L/Min, <40 ºC | 58 X 26 X 50 | 23 |
UM-06AB-UHF | 6.5KVA | 27A | 6KW | 1.1MHz | 220VAC, 50Hz, Single Phase | >0.2 MPa, 5 L/Min, <40 ºC |
Main: 52 X 24 X 50 Head: 14 X 14 X 10 |
17+6 |
UM-10A-UHF | 12KVA | 15A | 10KW | 900KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 5 L/Min, <40 ºC | 58 X 26 X 50 | 36 |
UM-10AB-UHF | 12KVA | 15A | 10KW | 900KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 5 L/Min, <40 ºC |
Main: 52 X 24 X 50 Head: 58 X 30 X 42 |
26+22 |
UM-20AB-UHF | 23KVA | 30A | 20KW | 600KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 5 L/Min, <40 ºC |
Main: 55 X 25 X 45 Head: 49 X 26 X 37 |
29+24 |
UM-30AB-UHF | 34KVA | 45A | 30KW | 500KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 5 L/Min, <40 ºC |
Main: 55 X 25 X 45 Head: 49 X 26 X 37 |
32+25 |
UM-40AB-UHF | 45KVA | 61A | 40KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 7.6 L/Min, <40 ºC |
Main: 65 X 34 X 55 Head: 51 X 30 X 45 |
49+28 |
UM-60AB-UHF | 66KVA | 90A | 60KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 10 L/Min, <40 ºC |
Main: 65 X 34 X 55 Head: 51 X 30 X 45 |
52+30 |
UM-80AB-UHF | 80KVA | 120A | 80KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 20 L/Min, <40 ºC | customized | customized |
UM-100AB-UHF | 110KVA | 150A | 100KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 25 L/Min, <40 ºC | customized | customized |
UM-120AB-UHF | 130KVA | 180A | 120KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 30 L/Min, <40 ºC | customized | customized |
UM-160AB-UHF | 180KVA | 240A | 160KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 30 L/Min, <40 ºC | customized | customized |
UM-200AB-UHF | 210KVA | 300A | 200KW | 400KHz | 380VAC, 50Hz, Three Phase | >0.2 MPa, 40 L/Min, <40 ºC | customized | customized |

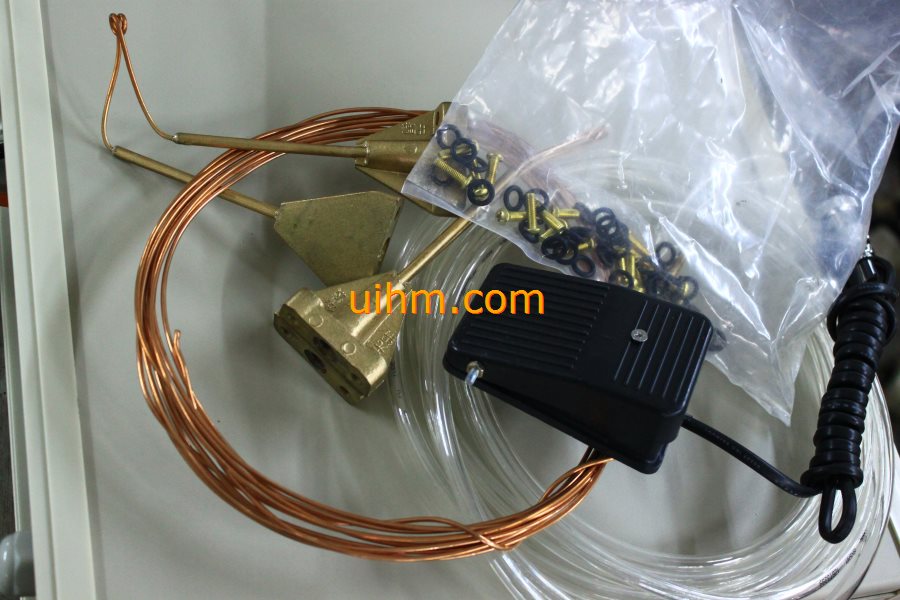

induction coil and spare copper pipes for UM-05AB-UHF induction heater

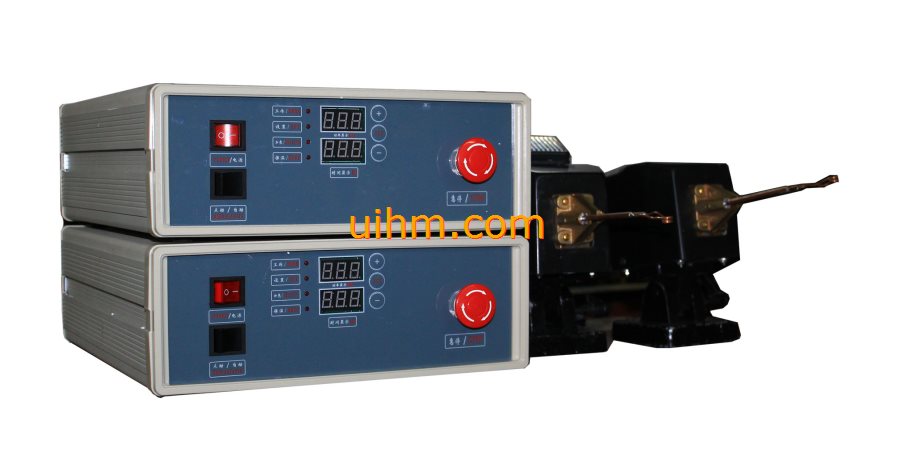

UM-05AB-UHF induction heaters

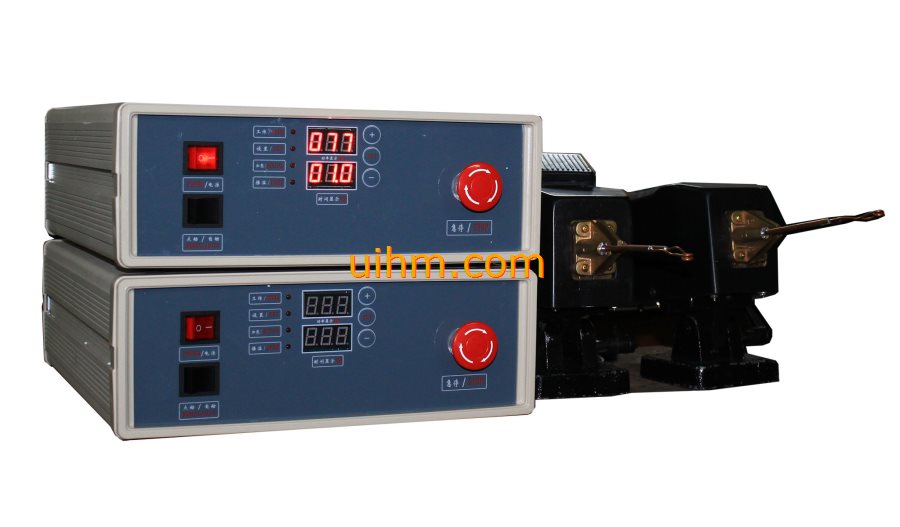

UM-05AB-UHF
