UM-120AB-UHF ultra-high frequency induction heater

 Views Send Enquiry

Parameters of (UHF) Ultra-High Frequency Induction Heating Machines:

Type Output Power Input Current Absorbed Power Max. Frequency Input Voltage Cooling Water Normal Size (cm) Net Weight(kg)
UM-05AB-UHF 6KVA 23A 5KW 1.5MHz 220VAC, 50Hz, Single Phase >0.2 MPa, 2-5 L/Min, <40 ºC Main: 43 X 35 X 13
Head: 23 X 10 X 12
10+6
UM-06A-UHF 6.5KVA 27A 6KW 1.1MHz 220VAC, 50Hz, Single Phase >0.2 MPa, 5 L/Min, <40 ºC 58 X 26 X 50 23
UM-06AB-UHF 6.5KVA 27A 6KW 1.1MHz 220VAC, 50Hz, Single Phase >0.2 MPa, 5 L/Min, <40 ºC Main: 52 X 24 X 50
Head: 14 X 14 X 10
17+6
UM-10A-UHF 12KVA 15A 10KW 900KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 5 L/Min, <40 ºC 58 X 26 X 50 30
UM-10AB-UHF 12KVA 15A 10KW 900KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 5 L/Min, <40 ºC Main: 52 X 24 X 50
Head: 14 X 14 X 10
26+6
UM-20AB-UHF 23KVA 30A 20KW 600KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 5 L/Min, <40 ºC Main: 55 X 25 X 45
Head: 49 X 26 X 37
29+24
UM-30AB-UHF 34KVA 45A 30KW 500KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 5 L/Min, <40 ºC Main: 55 X 25 X 45
Head: 49 X 26 X 37
32+25
UM-40AB-UHF 45KVA 61A 40KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 7.6 L/Min, <40 ºC Main: 65 X 34 X 55
Head: 51 X 30 X 45
49+28
UM-60AB-UHF 66KVA 90A 60KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 10 L/Min, <40 ºC Main: 65 X 34 X 55
Head: 51 X 30 X 45
52+30
UM-80AB-UHF 80KVA 120A 80KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 20 L/Min, <40 ºC customized customized
UM-100AB-UHF 110KVA 150A 100KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 25 L/Min, <40 ºC customized customized
UM-120AB-UHF 130KVA 180A 120KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 30 L/Min, <40 ºC customized customized
UM-160AB-UHF 180KVA 240A 160KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 30 L/Min, <40 ºC customized customized
UM-200AB-UHF 210KVA 300A 200KW 400KHz 380VAC, 50Hz, Three Phase >0.2 MPa, 40 L/Min, <40 ºC customized customized

Applications
  • Quick quenching
  • Hardening or quenching for small depth
  • Brazing for tiny workpiece
  • Heating tiny workpiece

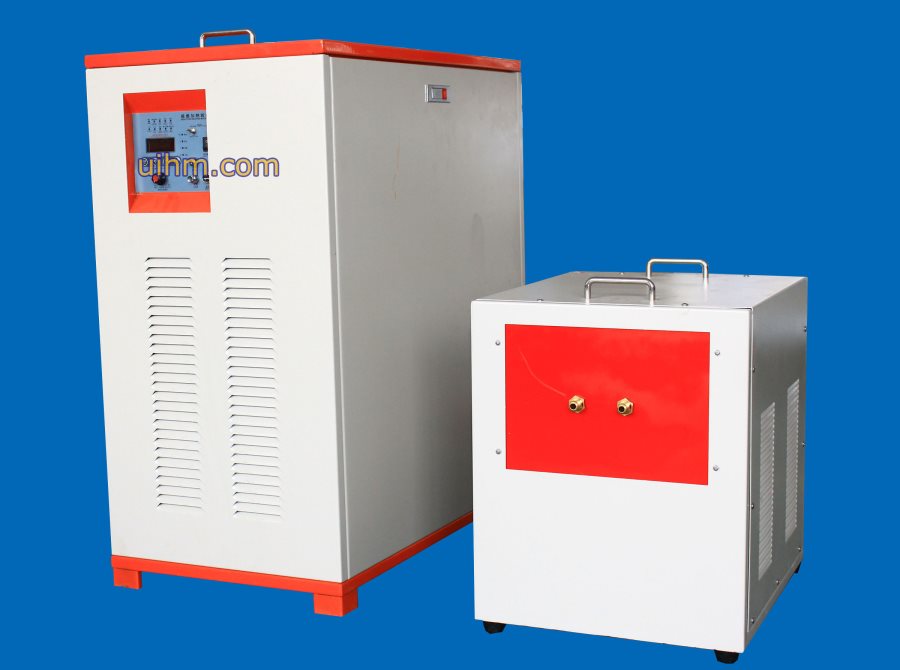

UM-120AB-UHF induction heating machine
UM-120AB-UHF induction heating machine
